MES Inbound - Upgrading older integration project

In our earlier MES application (External Production), the data is imported from the MES system into a table called Inbound From Innova. Then data is processed and changed into received items, output, consumption etc. In a similar way as in current MES but with an older processor / posting routine.

This process can be updated to use the new MES processor (posting routine), without changing the way data is imported into the system.

This applies to all projects which currently have integration (e.g. with Innova/Axin, CodeIt) and for when data is sent into BC via the API inboundInnovaEntries
See documentation: EP API - Inbound Entries


Setup

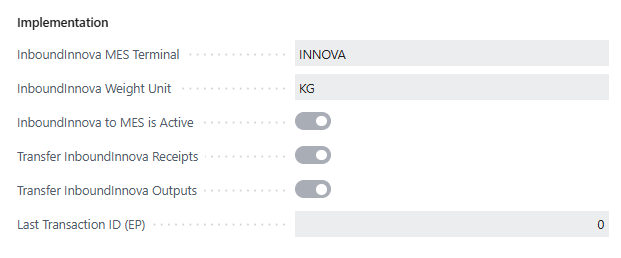

To activate this, use the following fields on the APIs Base Setup, tab MES Inbound Setup:


Field

Description

InboundInnova MES Terminal

Which MES Terminal is to be used on entries mapped from InboundInnova to MES Transactions

InboundInnova Weight Unit

This specifies the weight unit of measure that has been read into InboundInnova (Innova/Axin data).

InboundInnova to MES is Active

To activate that when a transaction is created from the InboundInnova API, the data is copied to the MES transaction tables, if the conditions in the data are met with those listed in the table below.

Transfer InboundInnova Receipts

To activate the For receipt entries, when a transaction is created from the InboundInnova API, the data is copied to the MES transaction tables. This applies for soapId = 108

Transfer InboundInnova Outputs

For production output entries, when a transaction is created from the InboundInnova API, the data is copied to the MES transaction tables. This applies for soapId = 107

Last Transaction ID (EP)

When upgrading from old EP to new MES, it is a good idea to start the MES transactions where the old transactions ended.

Specify the last WP Connector PK used in old EP, found in Trade Item ledger Entries.

Note: This is only for a clear relation between processed MES Transactions and Trade Item Ledger Entries.

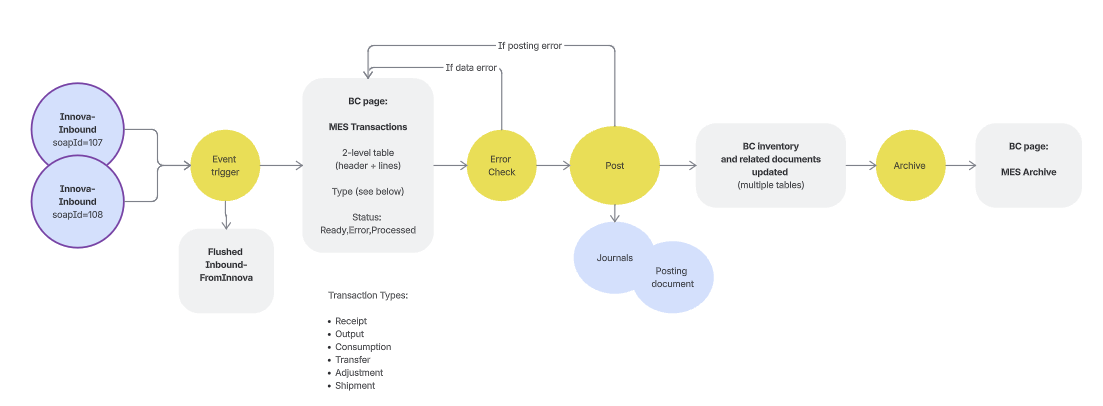

Data Flow

  1. Data is sent into BC with the endpoint inboundInnovaEntries

  2. If the mapping is active, the contents of the newly created Inbound From Innova entry is checked.

    1. If soapId=107 and “transfer outputs” is active , MES Transaction is created for Output

    2. If soapId=108 and “transfer receipts”, MES Transaction is created for Receipt

    3. Other soapIds are used just to change status. These entries do not have any items or quantities, then status change is done, but no MES transaction is created.
      See all data mapping in the table below: MES Inbound - Upgrading older integration project | Overview of Mapped Entries

  3. Then Inbound From Innova entry is moved into Flushed Inbound From Innova (because it is not supposed to be processed through the older application, External Production)

  4. The new MES Transactions (created in step 2) will be processed through the new MES



Overview of mapped entries

Data type

Conditions checked

OnInsert event will be triggered, that does the following:

Received items

soapId=108

  1. MES Transaction is created with Type = Receipt

  2. InboundFromInnova entry is moved directly into the log table, without processing anything

→ the transaction is processed through MES, no processing in old solution

Receipt started

soapId=300 and ReserveToAgreement-fields are linked to a PO line that exists

The Purchase Line gets “MES Status” = “In process at MES”

Receipt finished

soapId=301 and ReserveToAgreement-fields are linked to a PO line that exists

The Purchase Line gets “MES Status” = “MES Finished”

Produced items

soapId=107

  1. MES Transaction is created with Type = Output

  2. InboundFromInnova entry is moved directly into the log table, without processing anything

→ the transaction is processed through MES, no processing in old solution


Field Transfer from EP to MES

MES Field

Inbound from Innova Field

Notes

→ MES Transaction



"Ext. Reference"

LineNo

Format(InboundEntries.LineNo)

"Stock Center Code"

ProducerID


"Activity Date"

ProductionDate

DT2Date conversion

"Posting Date"

(Activity Date)

Same as Activity Date

"Location Code"

WarehouseID

CopyStr(WarehouseID, 1, 10)

"Location Code"

(Terminal Setting)

Terminal."Production Location" if WarehouseID empty

Lot

LotID


"Terminal Code"

(Terminal Setting)

Terminal.Code

Type

(Fixed Value)

Receipt/Output based on SoapID

Stage

(Terminal Setting)

Terminal."Receiving Stage" or "Production Stage"

"Document Type"

(Fixed Value)

PurchaseOrder (for receipts)

"Document No."

ReserveToAgreementNo

For receipts only

→ MES Transaction Line



"Item No."

ItemID


Quantity

Quantity

If Quantity ≠ 0

"Unit of Measure Code"

QuantityUnit

When using Quantity field

Quantity

masters

If masters ≠ 0 (outputs only)

"Unit of Measure Code"

(Item Setting)

Item."WiFi TI Unit of Measure" when using masters

Weight

Weight

If Weight ≠ 0

Quantity

Weight

Used as quantity for weight-based items (receipts)

"Unit of Measure Code"

(Setup)

Setup."Innb.Innova Weight Unit" when using weight

"Trade Item Barcode"

PacketID

Format(PacketID)

"Pallet Barcode"

SSCC


"Pallet No."

PalletNo


"Pallet Status"

"Pallet Status"


Lot

LotID


"Reserve to Doc. No."

ReserveToAgreementNo

For receipts only

"Reserve to Line No."

ReserveToAgreementLineNo

For receipts only

"Reserve to Doc. Type"

(Fixed Value)

PurchaseOrder (for receipts)

Key Business Rules:

  1. Quantity Logic: If Quantity ≠ 0, use it; if masters ≠ 0 (outputs), use masters; if both are 0 and item is weight-based (receipts), use Weight as quantity

  2. Unit of Measure Logic: Depends on which quantity field is used - QuantityUnit, Item TI Unit, or Setup Weight Unit

  3. Location Logic: Use WarehouseID if provided, otherwise fall back to Terminal's default location

  4. SoapID determines transaction type: '107' = Output, '108' = Receipt

  5. Weight handling: For irregular trade items (outputs), weight is stored separately from quantity
