EP API - SalesAgreementLines | Wisefish Manuals

Overview

The list page that contains the lines on the Sales Agreements endpoint. It can also be called directly to retrieve only the lines.

Endpoint name	`salesAgreementLines`
Source table in Wisefish	`WiFi Sales Agreement Line`
Fixed view	Document Type = Delivery Agreement Type = Item
Editable	Lines can be modified, but not deleted or inserted.
Primary Key	`"Document Type", "Document No.", "Line No."`

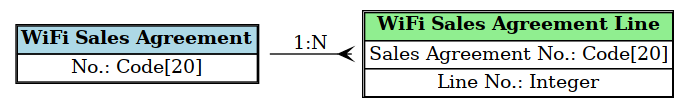

Below is an Entity Relationship Diagram showing the primary key fields of the sales agreement lines table, and how one of the fields in the primary key, is the primary key of the header table.

WiFiSalesAgreement has No as Code[20].
WiFiSalesAgreementLine has composite PK: SalesAgreementNo (Code[20]) and LineNo (Integer).
Relationship: One-to-Many (||--o{) from Header to Lines.

Data

Field List

Property	Table Field	Type	Note
`itemNo`	No.	Text
`itemDescription`	Description	Text
`quantity`	Quantity	Decimal
`noOfTradeItems`	No. of Trade Items	Decimal
`unit`	Unit of Measure Code	Text
`tiUnitOfMeasure`	TI Unit of Measure Code	Text
`type`	Type	Text
`status`	Status	Text
`salesTransWeight`	(calculated)	Decimal
`salesTransNrOfTradeItems`	(calculated)	Decimal
`systemId`	SystemId	GUID
`documentNo`	Document No.	Text
`lineNo`	Line No.	Integer
`salesTransBaseUOM`	(calculated)	Text
`salesTransQtyPerTI`	(calculated)	Decimal
`qtyPerUnitOfMeasure`	(calculated)	Decimal
`qtyPerTI`	(calculated)	Decimal
`allocatedNrOfTis`	Allocated No. of TIs (Base)	Decimal
`allocatedQuantity`	Allocated Quantity (Base)	Decimal
`documentType`	Document Type	Text
`lastModified`	SystemModifiedAt	DateTime	Note: The name of this field in business central is “systemmodifedAt” and it can be seen in page inspection in the user interface.

Example

Expand to see the example json

An example of one object in the list:

JSON

    "value": [
        {
            "@odata.etag": "W/\"JzE5OzQxMzk0NzA0MjY4Nzk4MjA0OTExOzAwOyc=\"",
            "systemId": "43ed3317-faed-ef11-aac0-c0b6f9b7cac7",
            "itemNo": "PRODUCT001",
            "itemDescription": "SHRIMP, COOKED and PEALED, IQF, 200-300 pcs/lb, 18-20% glazing. Pack size 4 x 2,5 kg",
            "quantity": 1300,
            "noOfTradeItems": 130,
            "unit": "KG",
            "tiUnitOfMeasure": "KRT",
            "type": "Item",
            "status": "Open",
            "salesTransWeight": 0,
            "salesTransNrOfTradeItems": 0,
            "documentNo": "AGREEMENT10000",
            "lineNo": 10000,
            "salesTransBaseUOM": "",
            "salesTransQtyPerTI": "",
            "qtyPerUnitOfMeasure": 0,
            "qtyPerTI": 0,
            "allocatedNrOfTis": 0,
            "allocatedQuantity": 0,
            "documentType": "Blanket",
            "lastModified": "0001-01-01T00:00:00Z"
